Caffeine Camper

View previous topic View next topic Go down

Caffeine Camper

Post  nhazelwood on Sun Nov 24, 2013 7:13 pm

Colour has got to be WHITE with Starbucks green arches & Starbucks logo's all over it........Damn.....They've changed to their Red christmas cups........Shocked

Colour has got to be WHITE with Starbucks red arches & Starbucks logo's all over it..........Oops Coffe overload Twisted Evil

Seriously, as i'm now 4 weeks in to being an ex-smoker.......my body has found a new level of equilibrium, in the revised words of Fat Boy Slims new song, i'm in "Coffee, Design, Coffee, Repeat" mode, my body is now happy with 2-3 hrs sleep (every other day!).

CAD has been running for the last couple of weeks on a simple but now escalating project....nearly finished, so let the design process start....Already got 90% of a Mk2 chassis in a virtual world....

Give me your wish lists & i'll make them appear in their fully rendered Glory..... Muhhhhaaaahhhhhhaaaaa...Sorry Coffee levels running low Embarassed .

Disclaimer: I HAVE A HABIT OF GETTING CARRIED AWAY WITH DETAIL IN MY DESIGNS, SO WHEN I START PUTTING BOLTS & STUFF IN, GIVE ME A POLITE SLAP, I'M USED TO IT,  TRUTH BE TOLD ITS ENJOYABLE...

Just to give you a quick teaser & an idea of how SAD i can get......

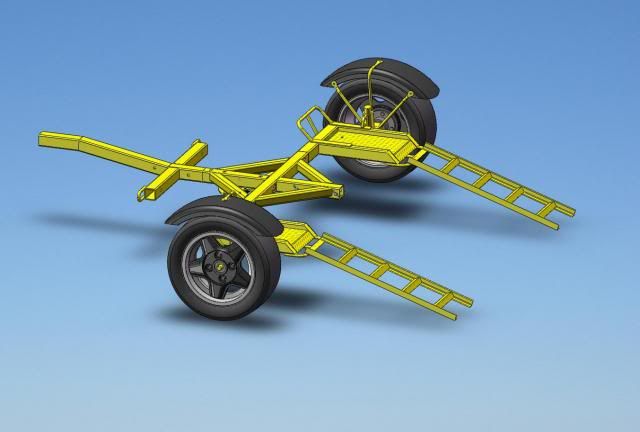

Idea was to make a collapse-able towing dolly...

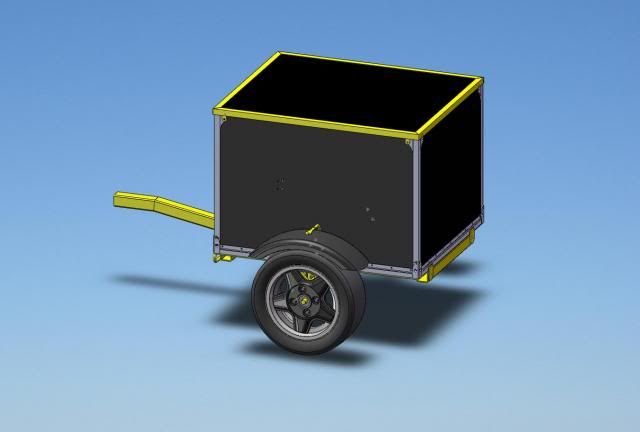

Then the old man piped up with, "Can a tow my scooter on that".....

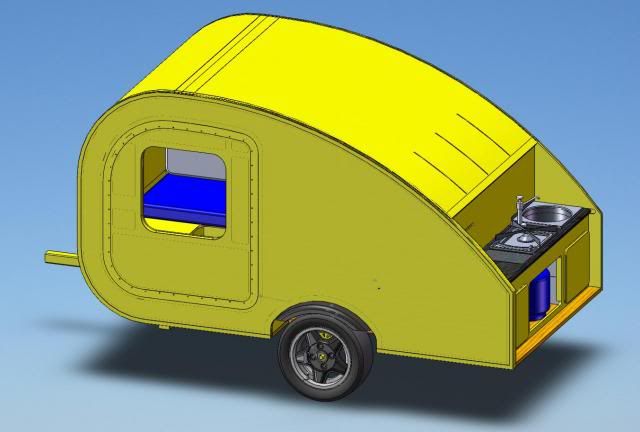

This then grew to "Ooh i could make this into a camping trailer....."



And finally to "Tents are a bit of a PITA to put up....."




Now i've got to rearrange the whole garage to try & get an 8' x 4' board in it....Sheesh

Solidworks 3d CAD Software---------------------------------Check Cool
Lotus Suspension Design & Anaylsis Software-----------------Check whistle
FEA (Finite Element Analysis or stress testing) Software-------Check getmecoat
Starbucks at Hopwood Services Open 24 hrs------------------Check Rolling Eyes

Let the Design Times Roll... Oh on a side note...I can only seem to model cars up in YELLOW, apols in advance....

Neil
avatar
nhazelwood

Number of posts : 259
Age : 44
Location : Hollywood (Honestly)
Job/hobbies : Design Engineer, Insomniac, General Bodger
Registration date : 2008-09-19

View user profile

Back to top Go down

Tear Drop Scamp

Post  NG Guy on Wed Nov 27, 2013 10:53 am

Love the idea of a "Tear Drop" backed Scamp with added accommodation as a bonus, perhaps extended to six wheels to take the extra weight.

Definitely an off the wall option!

NG Guy

Number of posts : 174
Age : 67
Location : Kent
Job/hobbies : NGs, Tarot, Retired Tech Author
Registration date : 2013-10-02

View user profile

Back to top Go down

Re: Caffeine Camper

Post  TRR Motorsport on Wed Nov 27, 2013 12:21 pm

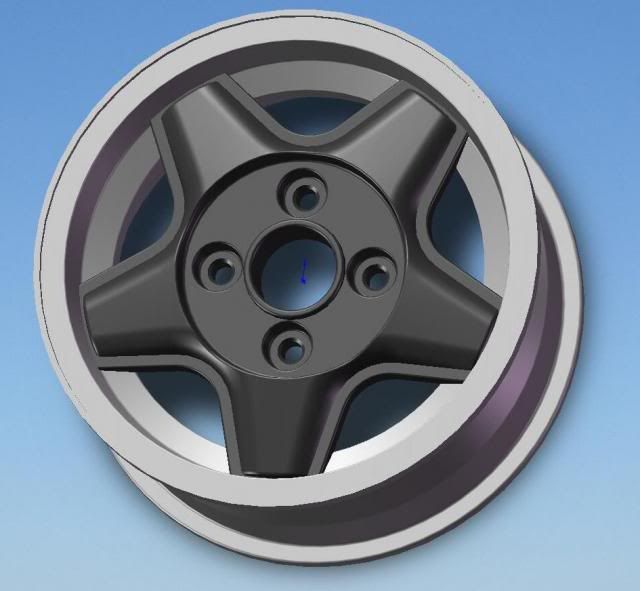

Nicely modelled up Revolution RFX alloys BTW Wink
avatar
TRR Motorsport

Number of posts : 1320
Location : GREAT Britain
Job/hobbies : Being British!
Registration date : 2008-05-19

View user profile http://homepage.ntlworld.com/trrmotorsport/

Back to top Go down

Re: Caffeine Camper

Post  nhazelwood on Thu Nov 28, 2013 8:48 pm

James, i guess you didn't read the Disclaimer in my post.....Yep i am SAD about the details...



That's how i found out that the Rev's won't fit on the trailer hub's i bought !!!!! Just need to find another RFX (as i've only got 5) then contemplate boring the centre of the alloy out to take the hub Shocked  or try & mod the hub Embarassed .

With regard to Pea.....what's the starting style......tray back .....Bowler......Atom.....2 bricks.....Oops that ones already been done.....

Give me some stylistic pointers & i'll crank up the CAD.

Neil
avatar
nhazelwood

Number of posts : 259
Age : 44
Location : Hollywood (Honestly)
Job/hobbies : Design Engineer, Insomniac, General Bodger
Registration date : 2008-09-19

View user profile

Back to top Go down

Don't want to Hi-Jack TRR's Post But

Post  NG Guy on Fri Nov 29, 2013 2:06 pm

Hi Neil,

If you really don't mind and have the time, could you please try the Tear Drop caravan idea, either with a 4 OR 6 wheeled Scamp.
I really think your CAD work is great!!

best regards Rob G.

NG Guy

Number of posts : 174
Age : 67
Location : Kent
Job/hobbies : NGs, Tarot, Retired Tech Author
Registration date : 2013-10-02

View user profile

Back to top Go down

Re: Caffeine Camper

Post  nhazelwood on Thu Dec 05, 2013 8:07 pm

Running a bit behind at the moment....Trying to move the garage around to get enough room for an 8'x x 4' sheet in...Only to come home to find the old mans just bought his next restoration project, a BSA Bantam Rolling Eyes

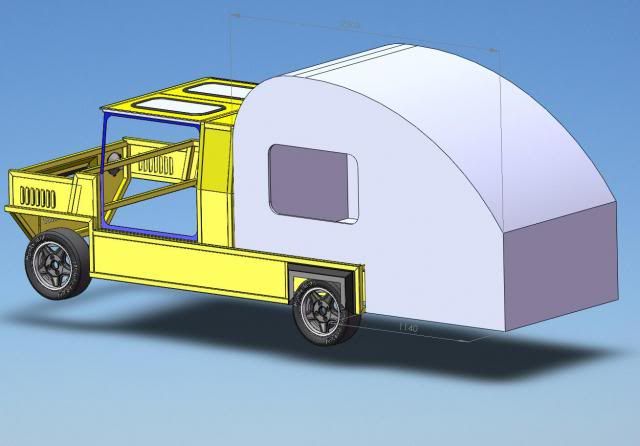

Right Rob, i've had a quick look at a Teardrop Scamp, but unless your my height, your going to end up with about a 1 metre overhang at the back when used with a standard length Mk2 (It's what i've got, so that'll do). not sure what it would look like with a 6 wheeler, prob drop down to approx 300mm.



James, Got a potentially scary idea for Pea, just need a bit of time to model it up......... MUUUUHHHHAAAAAhhhhhhaaaaaa...

Neil
avatar
nhazelwood

Number of posts : 259
Age : 44
Location : Hollywood (Honestly)
Job/hobbies : Design Engineer, Insomniac, General Bodger
Registration date : 2008-09-19

View user profile

Back to top Go down

Tear Drop Scamp

Post  NG Guy on Fri Dec 06, 2013 11:25 am

Thanks very much Neil appreciated!

I don't know if we have ever met; but I am about 5' 5", not sure what that is in metric! Maybe see you at Detling or the Woodman Pub meet.

I probably would have removed the rear most roll-bar; but maybe not worth the effort for the small gain. At least I have got a much better idea of how it would or wouldn't work now.

Best regards RG.

NG Guy

Number of posts : 174
Age : 67
Location : Kent
Job/hobbies : NGs, Tarot, Retired Tech Author
Registration date : 2013-10-02

View user profile

Back to top Go down

Re: Caffeine Camper

Post  nhazelwood on Sat Dec 07, 2013 8:07 pm

Hi RG,

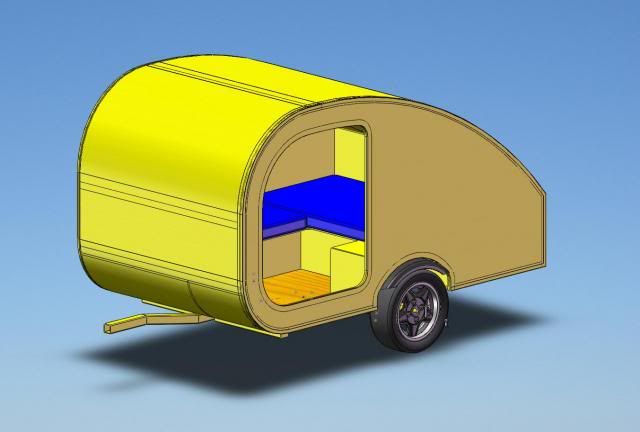

I'm 5' 4" so the scale shouldn't be too far out. On a side note the rear hoop of Walle's rollbar is about 200mm behind the standard front hoop. With my seat fixed (about 50mm of movement available due to my ott interior) the seat is about 1/2" clear of the rear hoop. To give a sense of scale to my Teardrop design, the side panels are machineable from an 8' x 4' Ply sheet (as its the size of the CNC router i use at work Wink ) with my raised seats inside to give some storage, i might just be able to sit up straight in the tallest part Rolling Eyes

Neil
avatar
nhazelwood

Number of posts : 259
Age : 44
Location : Hollywood (Honestly)
Job/hobbies : Design Engineer, Insomniac, General Bodger
Registration date : 2008-09-19

View user profile

Back to top Go down

Tear Drop Scamp

Post  NG Guy on Sun Dec 08, 2013 11:13 am

Thanks Neil,

I understand about the rear Roll Bar being kept now (without it seat-back would foul front of Tear Drop caravan).
Have you any pictures of your (Scamps) ott interior - just curious.
Where about's is Hollywood UK, are you likely to make either Detling or the Woodman meet?

Thanks Again, hope I didn't slow down your work on TRR's "Scary Pea Resurrection" too much.

Cheers RG.

NG Guy

Number of posts : 174
Age : 67
Location : Kent
Job/hobbies : NGs, Tarot, Retired Tech Author
Registration date : 2013-10-02

View user profile

Back to top Go down

Re: Caffeine Camper

Post  nhazelwood on Sun Dec 08, 2013 5:17 pm

Hi NG,

Hollywood is a little village on the borders of Birmingham, Solihull & Redditch....goes back to the Doomsday Book, so we're the Original Hollywood Wink

With regard to pic's of Walle, have a look in the Gallery under "Neils Incident".....it's the long boring one Embarassed Unfortunately work is going slowly due to Funds & other circumstances at the moment...Sad

PS the teardrop Scamp took about 45 mins to model.

Neil
avatar
nhazelwood

Number of posts : 259
Age : 44
Location : Hollywood (Honestly)
Job/hobbies : Design Engineer, Insomniac, General Bodger
Registration date : 2008-09-19

View user profile

Back to top Go down

Resurrection of Pea etc.

Post  NG Guy on Mon Dec 09, 2013 2:20 pm

Hi Neil,

Wow that was some front end rebuild! Front end must be the strongest Mk2 ever!
I hope you are fully recovered from the accident and that Walle will be fully operational very soon!

My wife comes from a village in Sussex called Etchingham, that is also in the Doomsday Book as you say definitely the original Hollywood; maybe ancient Druidic connections as mistletoe, Holly and oak are all sacred to earth based religions!

Very impressed that the Teardrop Scamp only took 45 mins.

Best regards RG aka NG Guy.

NG Guy

Number of posts : 174
Age : 67
Location : Kent
Job/hobbies : NGs, Tarot, Retired Tech Author
Registration date : 2013-10-02

View user profile

Back to top Go down

Re: Caffeine Camper

Post  Admin on Tue Dec 10, 2013 9:19 pm

Admin - Topic Split from The resurrection of Pea - And Called "Caffeine Camper"
